PISTON FILLERS
Linear volumetric piston fillers for dense and semidense products like: jams, tomato paste, ketchup, sauces with meat or vegetables, baby food, paté, marmalades.

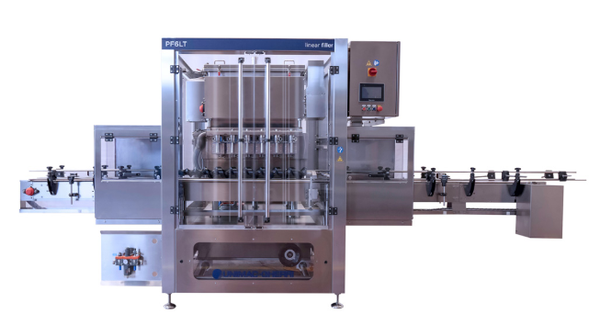

MODELS PF8L AND PF10L - LINEAR FILLERS WITH 8 -10

TECHNICAL DATA
• Containers diameter : 50 ÷ 100 mm
• Containers height : 70 ÷ 250mm
• Max filling volume : 1000 cc
• Installed power : 11 Kw
• Air consumption: Min 6÷7 bar (- - NLT) (± 0.2 bar)
• Overall dimensions : 3500x1670mm H. 2500mm approx
• Net weight : 1500 kg approx

TECHNICAL CHARACTERISTICS
 Strong structure with round tubes made of Aisi 304 stainless steel.
 Draining tanks integrated to the structure to collect cleaning product and hygienizing liquids
 Structure consisting of two separated parts: hygienis filling area and piping / preparation area
 Machine with 8 or 10 filling heads
 Product filling tank made of mirror polished AISI 316L stainless steel. On/off product interception valve.
 Volumetric filling pistons with hygiening configuration
 Piston filling system with electronic control for better filling accuracy by touch screen panel.
 No-bottle no-fill system
 Filling valve with pneumatic opening and closing, with vertical, horizontal or rotation movement depending on the product
 Automatic lifting system for container height change-over adjustments.
 Containers infeed conveyor with electronically controlled wormscrew
 All parts in contact with product made of mirror polished AISI 316L steinless steel.
 Gaskets and plastic parts in contact with product certified FDA.
 Safety guards made of stainless steel and tempered glass complying with CE regulations.
 Stainless steel electric control cabinet with touch screen panel.
