H440SC Horizontal Pre-Made
H440SC Horizontal Pre-Made
The most flexible configuration solution for small and medium pre-made pouches

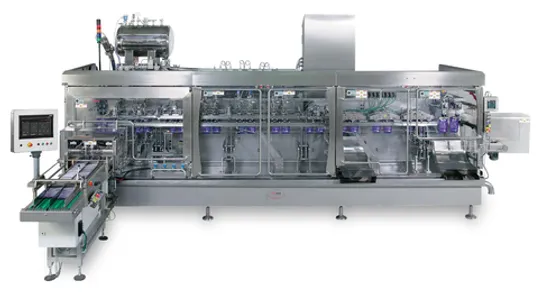

Mespack H440SC is designed for small and medium pre-made pouches with a capacity of 2000c.c., it is formed by a pouch feeding conveyor in one or two lanes. Then a pick and place system transfer the pre-made pouches to the main module where they will be opened, filled and top sealed. Various pouch designs are available including flat or stand-up pouches, shaped pouches, pouches with zipper closures, top and corner spouts for easy product consumption, etc
Main standard features
Athena enabled (HMI and IIoT)
Continuous dosing system available
Independent TOP jaws pressure control
PLC automatic lubrication system.
Pouch inspection station for vision cameras
Pouch reject station
Quick Changeover
Recyclable ready films
Static pouch stretching prior to top sealing
* Some of the items listed are optionals
Technical Specifications
Machines | H440 SC | H440 SCD | H440 SCT | H440 SCQ |
|---|---|---|---|---|
Max. Volume (cc) | 3000 | 2000 | 1000 | 750 |
Max. Output (p.p.m.) | 50 | 100 | 150 | 200 |
Max. Format (mm) | 440 x 350 | 220 x 350 | 145 x 300 | 110 x 350 |
Min. Format (mm) | 100 x 120 | 100 x 120 | 100 x 120 | 100 x 130 |
Filling Stations | 3 | 3 | 3 | 3 |
The final speed will depend on product and film characteristics, it may change according to projects.
