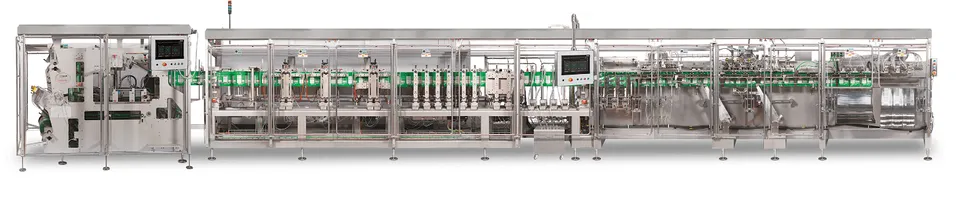

H570 Horizontal Form Fill and Seal
Maximum efficiency with minimum downtime for big pouches
H570
Mespack H570 Triplex solution forms and fills pouches with a maximum width up to 190mm and a maximum output of 180 pouches per minute. It complies with simplicity and robustness standards of Mespack design. It is designed to offer solutions for big stand-up and flat pouch formats.
Main standard features
Additional film compensator rollers
Athena enabled (HMI and IIoT)
Automatic adjustment seal jaws position
Automatic bottom perforator correction system for stand-up pouches
Autosplice unwinder
Auxiliar film transport gripper
Full servo version available
PLC automatic lubrication system.
Pouch reject station
Quick Changeover
Recyclable ready films
Static pouch stretching prior to top sealing
* Some of the items listed are optionals
Technical Specifications
Machines | H570D SC | H570 3 | H570 FED | H570 FET |
|---|---|---|---|---|
Max. Volume (cc) | 4000 | 2000 | 5500 | 250 |
Max. Output (p.p.m.) | 120 | 180 | 100 | 150 |
Max. Format (mm) | 285 x 400 | 190 x 400 | 285 x 400 | 190 x 400 |
Min. Format (mm) | 150 x 200 | 120 x 150 | 150 x 200 | 120 x 150 |
Filling Stations | 1-2 | 1-2 | 1-2 | 1-2 |
The final speed will depend on product and film characteristics, it may change according to projects.
