ML1000 Vertical Form Fill Seal
High speed solution for flat 4-side sealed
ML 1000

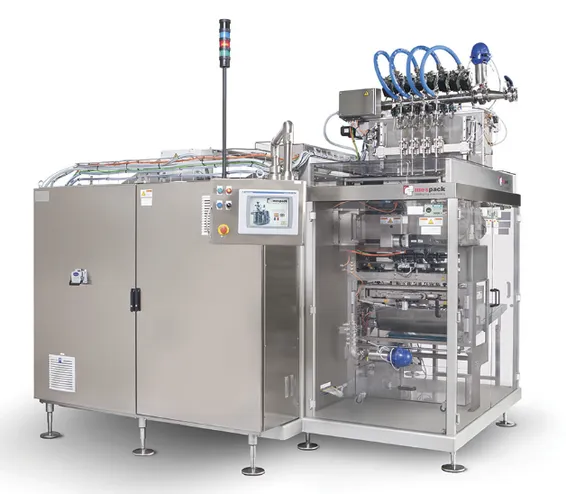

This high speed VFFS multilane flat sachet machine ML1000, together with the ML1200, form the flat sachet equipment range specially designed to cover the high capacity demands of the industry.
Up to 12 lanes, this equipment can cover the higHcapacity needs of industries like food or diet products, home & personal care applications, confectionaries, pharmaceuticals and more.
Offering a full-servo motorized solution, this vertical packaging machine features a new servo drive technology and is designed to run reels up to 1000 mm in width.
Main standard features
Athena enabled (HMI and IIoT)
Automatic change over
Automatic reel edge aligner in unwinder
Drives located within the frame
Free access to operating side of the machine
Free Maintenance Access to the Interior of the Machine
Full servo version
Integrated electrical cabinet (independent option available)
Maximum reel width 1200mm.
Monobloc tubular steel structure
PLC controlled auto lubrication
Recyclable ready films
Servo driven primary film drive system
* Some of the items listed are optionals
Technical Specifications
Machines | ML1000 4 | ML1000 5 | ML1000 6 | ML1000 7 | ML1000 8 | ML1000 9 | ML1000 10 | ML1000 12 |
|---|---|---|---|---|---|---|---|---|
Max. Volume (cc) | ||||||||
Max. Output (p.p.m.) | 240 | 300 | 360 | 420 | 480 | 540 | 600 | 720 |
Max. Format (mm) | 120 x 200 | 100 x 200 | 80 x 200 | 70 x 200 | 60 x 200 | 55 x 200 | 50 x 200 | 40 x 200 |
Min. Format (mm) | 40 x 60 | 40 x 60 | 40 x 60 | 40 x 60 | 40 x 60 | 40 x 60 | 40 x 60 | 40 x 60 |
The final speed will depend on product and film characteristics, it may change according to projects.
