PRIMARY PACKAGING

X-Ray

 โพสต์เมื่อ : 30 ต.ค 2566 เวลา 10:19 น.
XR1(2)
X-Ray

XR1

X-ray Inspection systems to assist food packaging and pharmaceutical companies better understand how to leverage this incredible technology in an effort to improve and manage the quality of their products.

Comes standard with contaminant detection, shape, counting, positioning and mass estimation inspections capabilities.

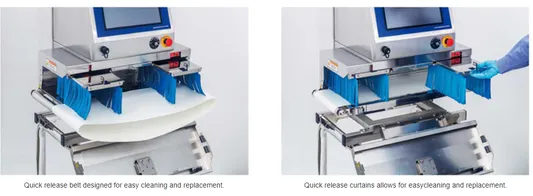

Easy cleaning and replacment with quick release belt and curtains

Stainless and sloped surfaces minimize water collection and maximize cleanability.

Safety sensors are embedded at access points to provide additional safeguards against X-ray exposure

Model

AD-4991-2510

AD-4991-2515

AD-4991-3530

AD-4991-4530

Conveyor width

250 mm

350 mm

450 mm

System length

800 mm

1000 mm

Conveyor height

720-860 mm

X-ray output

100 W (50 kV_2mA)

150 W (50 kV_3mA)

300 W (75 kV_4mA)

Conveyor speed

10-45 m/min

10-70 m/min

10-45 m/min

10-40 m/min

Conveyor load capacity

5 kg

5 kg (10-30 m/min)
4 kg (30-40 m/min)
3 kg (40-60 m/min)
2 kg (60-70 m/min)

5 kg

10 kg (10-30 m/min)
8 kg (30-40 m/min)

Operation temperature / humidity

0-35 ℃ / humidity 30-85 % RH (with no condensation)

Dust / water resistance specifications

IP66 for inspection room
