Case Packer W Series
โพสต์เมื่อ : 30 ต.ค 2566 เวลา 10:19 น.

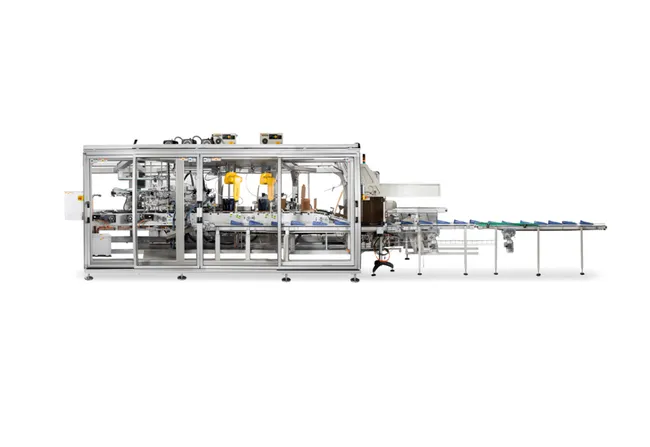

Wrap Around Case Packing
W Series CASE PACKING
Mespack Wrap-Around Technology offers higher production capacity in a smaller space and low operator maintenance time.
Technical Especification
| WRAP-AROUND | L (mm) | W (mm) | W (mm) | OUTPUT CASES / MINUTE (cpm) |
|---|---|---|---|---|
| Intermittent MOTION | ||||
| W7200 | 600 max | 600 max | 375 max | Up to 15 cpm |
| 220 min | 100 min | 120 min | ||
| W7000 PRO | 600 max | 400 max | 400 max | Up to 18 cpm |
| 185 min | 100 min | 100 min | ||
| W8400 | 500 max | 380 max | 380 max | Up to 35 cpm |
| 185 min | 110 min | 110 min | ||
| 510 max | 510 max | 380 max | 400 max | Up to 42 cpm |
| 185 min | 120 min | 105 min | ||
| W8500 | 510 max | 380 max | 380 max | Up to 42 cpm |
| 185 min | 120 min | 110 min | ||
| W8600 | 450 max | 390 max | 380 max | 105 min |
| 185 min | 120 min | 110 min |
